3 switch combo shown

Add a Third HD Ultra Switch

Connector Choices

Quantity:

On Board Combo Package! Great for A123, Nicad or NiMH!

Includes a Voltmagic On Board System Monitor and your choice of two or three HD Ultra Switches. The VoltMagic displays voltage, records glitches and the lowest voltage obtained on the previous flight. Accurate monitoring for all pack types.. including A123. Using a Dual Switch system combined with a Dual Lead or Parallel battery pack system spreads the servo loads out across multiple Rx ports and protects against catastrophic loss from intermittent switch or connector/contact failures common to high vibration gas powered applications. Save some bucks and get your big bird the Quality Rx and Ignition setup gear you need to protect your investment & do it right the first time!

Note: See our A123 Setup Guide on how to use this package with the A123 Field Gear Package below!

VoltMagic & 2 HD Ultra Switches, regularly $75.85

Sale Price: $65.85 You save $10.00!

VoltMagic & 3 HD Ultra Switches, regularly $93.80

Sale Price: $78.80 You save $15.00!

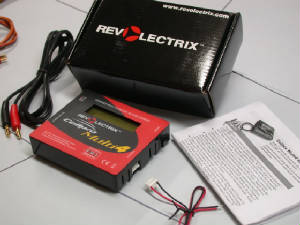

FMA Multi-4 12v Field Charger

FMA's outstanding single port, single cable Multi-Chemistry balancing charger, handles anything you are likely to need to charge, anywhere. Simplest, easiest to set up and use charger for A123, absolutely ideal for A123 support at the field or at home with a separate 12v supply. And.. we've packaged it with the correct charge cord for any of our 6.6v 2 cell A123 packs as well as any 4 or 5 cell Nicad or NiMH Rx or Ignition pack equipped with an R/C system standard Futaba, JR/Univ, Specktrum, Hitec or Airt Z connector. That's right.. 90% R/C system coverage, right out of the box, nothing extra to buy.

Just some of the features..

Selectable charge rates range 5mA to 4A
Auto charge mode (AUTO 1C, 2C, 3C charge rates)
Advanced fuel gauging technology
Backlit Liquid Crystal Display
Multi-Chemistry, supports LiPoly, LiIon, LiFePO4, A123, LiMn, NiCd, NiMH, Pb)
Basic preset parameters (select charger preset and choose current) may be edited at the charger
Intuitive 1 button user interface
Cold weather mode
Unprecedented Accuracy
Fuel Gauge Readout
Unparalleled Safety
Self Diagnostics
Safety Charge Mode
Support for long battery extensions

$69.95, includes charge connector

Yes, we have an A/C Power Supply for this charger, just scroll down

FMA Multi-4 12v

"..lowest priced single cable A123 balanced charging solution available anywhere. FMA has done it again!!"

Pack capacity: 5 mAh to 32Ah (charge time limited to max 8 hours)
Input voltage: 10-16VDC, reverse polarity protected
Input current: 1A to 5A, software limited, user adjustable using PC software
Power conversion: DC/DC converter, 125 kHz, 90% efficiency
Nominal Output Voltage: 1.58, 3.65, 4.10, and 4.20 volts per cell, 19V maximum
Output battery charge current: Adjustable range 5mA to 4A, limited by 5A input current
Continuous max output power: 58W @ +12VDC input
Voltage calibration: Cell voltage measurements are factory calibrated to a standard traceable to NIST; calibration is to +/- 6 mV
Current calibration: Charge current is factory calibrated on a 4A standard; calibration is to +/- 1mA
Output battery connector: “Cellpro” compatible, JST PA series, 5 position
LCD: 2 line, 16 character, light grey/blue backlit

Includes the FMA CellPro Charger to Univ Cell Tap Adapter Cable!

Out of the box, ready to go charge coverage for:

Nicad or NiMH packs with FJ, JR/Univ, Hitec, AirtZ connectors.

All of our 2 cell 6.6v NoBS A123 packs

Virtually any FJ or JR Chargeport Switch

Just $69.95, ready to go!

FMA Multi-4 Manual

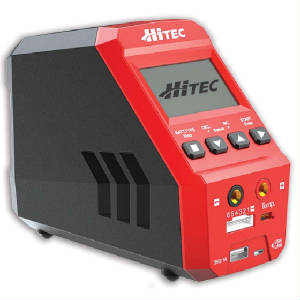

Hitec X1 w/ OEM Cable Set

NEW!! Hitec X1 AC/DC Multi-Chemistry Charger/Cycler

Here's an excellent little AC/DC single port charging station for all battery types, will handle anything you are likely to need to charge, anywhere. Straightforward 4 button programing logic and when coupled with our unique optional 'Combo Solution Charger Cable' makes single cable balance charge support for our A123 Rx & Ignition packs via a chargeport switch a piece of cake.

Even better.. this charger has a cycler! AND it's own built-in AC supply! Works from 12v too! That makes this an excellent pick as an entry-level smart charger for any kind of pack and any kind of flyer.. from NiCads & NiMH to Lithium's & A123's, Motor packs, Tx packs, Ignition packs, ECU packs, regardless of technology type, at the field or on the bench. Finally.. big competent 'smart charger /cycler ' features with a small field box footprint and all at a modest price.

Just some of the features..

· AC Input: 100-240V

· DC Input: 11-18V

· Circuit Power: 50W

· Max. Discharge Power 5W

· Charge Current 100ma-6.0A

· Discharge Current 100ma-1.0A

· Balancing Rate: 300mA/cell

· NiCd/NiMH Cell Count: 1-15

· LiPo/A123 LiIon Cell Count: 1-6

· Pb Battery Voltage: 2-20V

· Net Weight: 15.2oz (433g)

· Dimensions: 5.3 x 4.4 x 2.4"

· $64.95, Basic w/ standard OEM cabling shown above

· $74.95, the 'Standard'; adds our Univ FJ/JR Rx & Tx Cord set

OR, for $79.95, the 'Special'; adds our A123 Combo Solution Charge Cord

Note: the 'Special' does NOT include the Univ Tx / Rx cord set. To get all the cord options, choose the 'Deluxe' Version in the cart & SAVE $17.95!

Hitec X1 AC/DC

"..finally, an AC/DC multi-chemistry Smart Charger/Cycler package for WAY under a hundred bucks, complete!!"

Charges 1-6 cell LiPo, A123 and Li-Ion batteries
1-15 cell NiCd and NiMH batteries and
2-20V Pb (lead acid) cells
Operates on 11-18V DC or 110vAC power sources
Automatic charge and discharge settings
Cyclic charging/discharging-1 to 5 cycles
Internal independent lithium battery balancer
"Fast" and "Storage" lithium battery charge modes
Delta peak detection for NiCd and NiMH batteries
Capacity and temperature limits
Data storage for up to five batteries

X1 Basic includes: Charger with AC and DC Power Cords, Charge Lead with Tamiya type Connector, Charge Lead with Bare Wires, JST-XH 2S - 6S 'Balance Board' and Instruction Manual. X1 Special adds our NoBS 'Combo Solution' A123 Charge cord, $24.95 value, X1 Standard includes our Standard FJ/JR univ Rx & Tx cords, etc .. see below.

Univ Rx & Tx Charge Cord Set, reg $12.95

A123 Combo Solution Charge Cord, reg $24.95

Add to the OEM cable set with these Package Options, just add your choice of these additional output cables.. Save up to $17.95!

Order it with the cables you need, for the type packs you intend to charge.

Just $64.95 for the Basic version w/ OEM cables or $74.95 for the 'Standard' version w/Univ Rx/Tx cord set, or $79.95 for the 'Special' version w/ A123 Combo Cable OR get all the cord options together for $84.95

Choose Version / Connectors

Quantity:

Hitec X1 Charger Manual

FMA 12 volt 5 Amp Charger Power Supply for Multi-4

Here's an excellent little 12 volt 5 amp output switching power supply that's ideal for the FMA Multi 4 or the Hitec X4 Multiport charger. Takes just about any 12v supply charger from the field to the bench at home. Runs from any 110v grounded socket outlet in your home, has banana plug type ouputs you plug your charger right in to.

$24.95

12 Volt, 5 amp output

Switching Supply.. low noise, steady power on demand

Banana Plug Outputs, no adapters required for most chargers

$24.95

FMA Multi-4 PC Interface Module

This high speed, opto-isolated, PC USB interface module is designed to provide safe, 2-way communication between FMA Chargers and a PC USB port. For use with free PC software, supports firmware updates, and PC compatible GUI software for the FMA Multi-4 Charger and other FMA products. Drivers for this device are available from FMA for the Multi-4 by clicking the link "download usb driver", below.

$18.95

Download USB Driver

Gets your PC and your FMA Multi-4 communicating

Upgrade firmware in older Multi-4's

Program User Presets

Customise your charger!

$18.95

NEW!! NoBS Batteries Balance Buddy Module for A123 capable chargers

Designed for NoBS A123 Rx & Ignition packs; enables simple, fast & easy pack equalization, allows single cable access to the pack via the switch chargeport to check and charge each cell individually. Isolates each cell for voltage checks, charging & discharging without a balance board or a second connection to your charger. No more waiting around at the field for a slow balance charge routine to complete.. just charge each cell individually and FLY!.

$24.95

For A123 2 cell Rx & ignition packs w/ Univ celltap or Combo Three Wire power feed only! For more info click the picture above!

Univ (JR/FJ/Hitec) Connectors in & out

3 Amp max current

Three wire pass-thru for FMA chargers

Works with ANY A123 compatible charger

Set up for out-of-the-bag operation with any A123 pack with a Univ/JR balance tap OR a Combo 3 wire Univ pack feed

Allows fast access to the individual cells via most switch chargeports with easy switch mod

Click on photo to the left for details!

From Aviation Concepts, made right here in the USA!

JST-XH & FMA Charger to Univ Cell Tap Adapter Cables.
For use with the standard 'univ' cell tap or the Combo3 Wire Connector to adapt the R/C standard Univ balance tap on our A123 packs to most balance port equipped Chargers. We have three types available, two for FMA chargers as well as another for those chargers that use the JST-XH type plug format for a balance connection. (Hyperion, Thunder Power, Triton ElectriFly, Smart Cube, Fromeco, etc; check your chargers manual for JST-XH compatibility!!)
The adapter cable allows easy access to the pack in the plane via a conventional chargeport equipped switch or separate chargeport. The choices available provide connecting compatability with the vast majority of A123 capapble balancing chargers. See the A123 setup Guide and the A123 FAQ page for info on how to take advantage of in-the-plane access for checking individual cell voltages or balancing A123 Rx & Ignition packs.

JST-XH or FMA Charger to Univ Cell Tap 3 wire Cable
$9.50

Note: If you planning on buying an FMA Multi-4 Charger from us, it comes WITH the appropriate Adapter cable for NoBS A123 Rx & Ignition packs at no extra charge..

NEW!! The Combo Solution Balance-Charge Cord for JST-XH two lead chargers

Wish your two lead A123 charger could balance charge with just one connection to the pack or switch? This excellent Combo Chargecord works across a broad spectrum of JST-XH balance plug or board compatible 2 lead (1st generation) chargers like the TP 610C, B6AC, etc; Allows single cable balance charge connection to a JR/Univ HD Chargeport switch if used with any NoBS A123 Rx or Ignition pack equipped with a 20g 3 Wire Combined Univ Balance & Power Feed. Makes balance charging with most 2 lead chargers through a single HD chargeport switch simple and easy WITHOUT a separate chargeport and it's fully compatible with Balance Buddy too!

For use with 2 lead chargers that have a JST-XH compatible balance board or output port; intended for NoBS A123 2 cell Rx & ignition packs equipped with 20g 3 Wire Combined Univ Balance & Power Feed connected to a modified JR/Univ HD Chargeport switch. See our A123 Setup Guide for info on the switch mod. Check your chargers manual for JST-XH plug compatibility!!

$24.95

JST-XH & Banana Plugs In

Single JR/Univ 3 wire Out

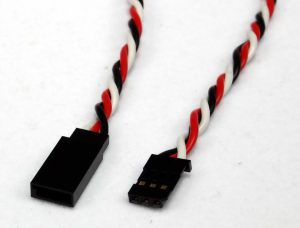

18" long, HD 20g twisted cabling

3 Amp max current,

For JR/Univ Chargeport Switch

Plug & Play balance charging for NoBS A123 Rx/Ignition pack with a Combo 3 wire Univ pack feed

Allows one cable balance connection via most switch chargeports with easy switch mod

Combo Cord Set for 2 Lead JST-XH/Banana to JR/Univ:

Univ System Charge Cord Set; Banana Plugs

Here's the complete Transmitter pack and Receiver pack support cord system, allows complete coverage of all major connector types, including HiTec, JR, Spektrum, Futaba and AirtZ Type Rx packs and Transmitters. Two cords, one for the Tx with a universtal 'star' head for all major Tx brands, and a Univ Rx pack cord for all major radio system types. Good quality, NOT Hobbico! $12.95

Note: For chargers with banana plug outputs ONLY!

Complete Rx & Tx set: $12.95

Univ Rx Charge Cord; Banana Plugs

This is the Rx cord ONLY, as shown above in the set. Allows coverage of all major connector types, including HiTec, JR, Spektrum, Futaba and AirtZ Type Rx packs. 12" length, 22g, Univ Female on one end, banana plugs on the other. $4.95

Note: For chargers with banana plug outputs ONLY!

Univ Rx Charge Cord, Banana plugs: $4.95

System Charge Cord Set; DIN/Ace Plugs

Compatible with Ace and Sirius type chargers and test equipment, here's the complete Transmitter pack and Receiver pack support cord system, 'Barrel Plug' to any Rx & Tx. Allows complete coverage of all major connector types, including HiTec, JR, Spektrum, Futaba and AirtZ Type Rx packs and Transmitters. Two cords, one for the Tx with a universtal 'star' head for all major Tx brands, and a Univ Rx pack cord for all major radio system types. Good Quality.. NOT Hobbico! $12.95

Complete Rx & Tx set: $12.95

Univ Rx Charge Cord; 2.5mm DIN Plugs

Univ RX Charge Cord, 2.5mm DIN plug: $4.95

'White' Transmitter Pack Mating plug, JR / Hitec / etc

Here's a lil lifesaver.. having trouble finding a plug that mates that weird lil black or white plug on your Spektrum, JR, Hitec or Futaba Transmitter pack? Can't cycle test or fast charge through the radio system's charge port?? Well, here's what you need! This will mate with any Tx system plug by matching up the prong with the red wire on the charge cord to the the red wire on your pack connector. Comes ready to use with banana plugs for complete charger flexability. $6.95

Tx Pack mating Plug: $6.95

Anderson Power Pole / Sermos Charge Cord Set; Sermos to Bananna

Banana Plugs on one end, Sermos/Anderson Connectors on the other. Since I've added these to the inventory they have become one of the top sellers. Excellent solution for handling everything from field batterys and electric flight packs to setup cords for Tritions and Super Novas. $9.95

Banana to Anderson Set: $9.95

Sermos / Anderson Power Pole Connectors

Three sets of connector pairs. Enough for 3 packs, or a charger/pack/motor control installation. These are the most versitile connectors used in the hobby; suitable for high current loads, designed to be set up quickly for either series or parrallel connetions. Available with contacts for 22g - 18g wire and 16g -12g wire.

3pr $4.95

22g - 18g wire or 16g -12g

3pr $4.95

Sermos / Anderson Parallel 'Y' Harness

Here's a neatly done short sermos Y harness for 'doubling up' your Li-Poly or Nicad / NiMH motor & Starter packs in parallel. Doubles run time, doubles 'C' rating on the packs. Closest thing to a free lunch you'll ever get in electric flight.

Sermos / Anderson Y, $9.95

Sermos 16g short Y, $9.95

Loadmaster II 500ma & 1amp Digital Load Tester

Got a big plane? Got the right Load Tester? 'Hobby Shop' ESV's don't do the job because they can't emulate the higher loads encountered in larger planes. The Loadmaster II provides a selectable 500ma & 1000ma (1amp) load and it's designed for use with any capacity 4.8 or 6.0 Nicad or NiMH or 2 cell Lithium Rx or Ignition pack. Displays the Loaded and Unloaded pack voltage on it's self contained, pack powered meter (no pesky internal batteries to constantly replace) & gives accurate readings to 1/100th of a volt! Comes ready to use for Futaba, Hitec or JR systems, just plug it in to your charge port and see both the loaded and unloaded voltage of your pack.

Aviation Concepts Loadmaster II, just $54.95

Ready to use, Includes 18g HD System connector

$54.95

VoltMagic On-Board System Monitor

NEW!! Now includes A123 Support!

We’re thrilled to introduce the ultimate in integrated monitoring systems for your Radio Gear and Battery Packs. VoltMagic monitors pack voltage, radio glitches, peak low voltage and intermittent system interruptions and will even track and report marginal Voltage Regulator and/or Battery Pack performance under actual flight loads!

Up till now you’d have to spend hundreds of dollars and drag along a laptop to get this kind of data on flight safety critical system performance. Ideal for high-drain, high load digital servo applications! If you’ve got an aggressive 3D or aerobatic aircraft THIS device is what you need. Easy to install (just plug it into your receiver), simple to program and it weighs less than an ounce. Reports at the end of your flight the peak low voltage sustained under load, the number (if any) of glitches or 'radio hits' and stores the info for display even after you turn your radio system off! Constant real-time reporting of actual voltage of your system!

For use with 2.4 GHz, PCM or regular FM radios systems, 4 cell and 5 cell Nicad or NiMH packs, 2 cell Lithium, including specialized programing options for A123 packs. Works seamlessly in all types of system installations; including regulated systems!

Just $39.95

VoltMagic for all system types, $39.95 ea

Comes complete with a HD gold plated universal system connector and Illustrated easy to follow setup instructions for ALL radio systems.

Click the picture below to view the instructions, setup guide and MFG data.

Full Support for A123 Packs as well as Nicad, NiMH, LiIon and Lipoly packs, for Non-regulated and Regulated systems.

On-Board Voltage Monitor

Designed specifically for use mounted on board your aircraft. Dash mount or install in the fuselage side near your switch port. Use for either Rx system or Ignition system voltage display.

Works with any Li-Poly, Li-Ion system as well as with regulated and non-regulated 4.8 and 6.0v Nicad and NiMH systems. The meter comes pre-wired and is compatible with any Futaba J, JR, Hitec or AirtZ system. Plug it into any unused port on the receiver or it can be Y harnessed with any servo or the battery lead.

Aviation Concepts On-Board Voltage Monitor, just $42.95

In the Rx pack circuit the meter typically shows free or unloaded voltage. To simulate a load test on your receiver pack, try moving both control sticks simultaneously on your transmitter for a few seconds to observe the voltage while the servos transit. (We reccomend you use a 'loaded' ESV to evaluate the pack's charge condition before making a decison to fly) Self powered, draws less than 3ma and mounts in a 1 5/16" x 13/16" opening.

On-Board Digital ESV with Load

Similar to our On-Board Voltage Monitor, this one comes with a load test circuit and button! It's designed specificly for use mounted on board your aircraft. Dash mount or install in the fuselage side near your switch port and route the load test button to wherever you'd like to mount it.

Aviation Concepts On-Board Digital ESV w/Load, just $49.95

The meter typically shows free or unloaded voltage. To conduct a formal load test, just press the button and hold it down for 5 seconds to observe the loaded voltage of the system and evaluate the charge condition of the battery between flights. Saves wear and tear on the charge port from repeatedly jacking in an external ESV with load. Available with .4, .8 or 1 amp load

ED UltraSwitch II Extra HD One Piece Chargeport / Switch

This combines an Extra HD 22g dual pole, dual throw switch with 4 redundant contacts and charge port with 'hood' into one faceplate. Extremely high quality 'bakelite' type plugs and gold contacts. This is an outstanding HD switch for high current digital servo applications. Designed for Nicad or NiMH sytems originally, this DSC Compatable (direct servo connection) 3 wire switch can be easily 'moddded' to use A123 packs w/ the combo 20g 3 wire power feed for direct access to balance charging A123 packs in the plane, via the switch chargeport. Comes with a vibration pad for installation, 'switch guard' faceplate, closeable chargeport hood and makes for a very neat, easy to install assembly. This switch is a complete 'one hole' solution for switch and chargeport setups for each of your packs.. Rx or Ignition. Very light (.5oz) & durable; use two of these for parallel Rx battery installations.

$17.95

Extra HD Chargeport / Switch, $17.95

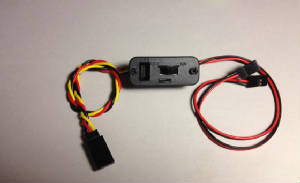

NEW! NoBS Batteries 'Combo Solution' UltraSwitch II for NoBS A123 packs w/ 20g 'Combo' Input Connector. Your choice of Dual or Single output connectors to the Rx!
-
An outstanding evolution of the UltraSwitch II, set up exclusively for us by ED for our NoBS single lead Combo 20g A123 packs and optimised for Giant Scale applications with your choice of power output configurations. This switch is set up with a 20g 3 wire twisted input that compliments our A123 Packs with the 20g Three Wire Combo Connector, allowing single cable balance charging thru the switch at up to 4 amps. No Mods, no fussing about, order our A123 Packs with the single 20g Three Wire Combo Power Feed (NO separate balance connector!) and your installation is 'plug & play' simple. The switch output is your choice of either DUAL 22g Univ/JR leads for the Rx, (best for single pack, single switch installations) or a Single 18g JR/Univ output making it ideal for Parallel A123 pack and switch setups common in high load applications for 30-40% IMAC and Warbirds.
-
$24.95
-
*Note: A123 rated, Designed specifically for 2nd generation single lead balance charging! If you have a 1st generation two lead balance charger, use the 'Combo' charge cord sold above, NO SEPARATE CHARGEPORT REQUIRED!
The correct pack connector configuration for this switch is WITHOUT a separate 22g balance lead and WITH the Combo 20g three wire Power Feed.

Combo 20g Three wire Balance Input for NoBS A123 packs, your choice of either Dual 22g JR univ out OR Single 18g JR/Univ out to Rx.

$24.95

NEW!

ED High Load Extra HD One Piece Chargeport / Switch

18g Deans & 22g JR/Univ Input / Dual 22g FJ/JR Univ Output
-
Same switch as above, but with an 18g HD Deans Ultra & 22g 3 wire JR/Univ input and dual 22g FJ/JR Univ outputs. Ideal for either A123 or Nicad/NiMH high load pack applications. Allows balance charging via the switch chargeport for A123 packs. Plug the second output lead into any open slot on your receiver. Ideal for 25% and larger aircraft with high load digital servos. This configuration increases the continuous power rating of the switch and connectors to 8 amps and spreads flight loads over two sets of pins on the Rx. Ideal for use with A123 packs equipped with single Deans Ultra connector and Univ Balance lead OR conventional high capacity/high load Nicad/NiMH packs with 18g Deans connectors. Max charge rate through the charge port is 4 amps. This is an outstanding HD switch for high current digital servo applications, especially suited to large current demand 3D Aerobatic applications. Comes with 'switch guard' faceplate, closeable chargeport hood and makes for a very neat, easy to install assembly. Very light (.6oz) & durable.

$29.95

18g Deans & 22g JR/Univ In - Dual Output 22g JR/Univ Extra HD Chargeport / Switch, $29.95

OEM Type/Size System Switch, 22g

The most common source of failure in an R/C system is a worn-out or intermittent switch. Vibration, fuel soaking and contact wear all contribute to the degredation of the switch. If it's time to replace a pack, it's likely time to consider replacing the switch.

Here's an excellent quality switch harness with charge lead, same physical size as most OEM switches, equipped with 22g leads, high quality gold plated connectors and a DPDT redundant switch. Partner this up with a External Charge Port or Hide-Away Internal Switch Mount (below) for easy field acess to your pack for load checking and field charging your Rx or Ignition pack

$7.95

OEM Size System Switch, 22g $7.95

Univ Charge Port (FJ/Hitec/JR)

Already have a good switch? Need a clean and simple port on the fuselage side to get at your charge plug for ESV checks and field charging? Here's a simple and very light way to gain acess to your pack without tearing down your plane. Fits Futaba or JR/Hitec/AirtZ switches of any size. $3.95

Univ Chargeport Kit, $3.95

Dubro Hide-Away Internal 'Kwick Swich Mount' & Charge Port

Here's a clean and easy to install switch mount that adds a charge port to the fuselage side and moves the switch inside the plane to protect it from debris and fuel soaking. Will mount any MFG's OEM size switch, uses a simple Pull/Push Rod & Ball to activate the switch. Charge port has a flip down hood. Allows fast and easy access to the Rx pack for ESV checks and field charging. Comes with mounting hardware, Allen key and complete installation instructions. $4.95

Dubro Switch Mount w/chargeport, $4.95

Adjustable Voltage Regulator

Six volt packs provide faster servo transit and more torque for big control surfaces. In some applications with older JR digital servos a regulator is required; in some others 'jittering' is an issue with freshly charged 6v packs. A123's on some Ignition Modules provide higher voltage than the module can tolerate... A regulator is the cure!

Key Features: • Universal Connector • Input Range: 4.8V - 8.4V • Selectable Output: 5.95V or 5.4V • Current: 5A continuous, 10A peak @ 7.4V input and 5.95V output, Weight: 0.7oz. Works with 4,5 or 6 cell NiMH/Nicad and 2 cell A123 Lithium packs. If the supply voltage drops below the output set voltage the regulator is automatically bypassed.

Fully 'plug and play' ready, comes with HD gold plated 22g Univ system connectors and instructions.

$19.95

Comes with Univ Connectors for input and output and it fits all current radio systems.

$19.95

Aviation Concepts Switch Hides! TM

Hide those Ugly Switches!

Go from this....

To THIS!

NEW!! Aviation Concepts Switch Hide Kits

At last! A clean and simple hidden compartment for your system switches, fuel fill, air line inlet or chargeports. Got a beautiful scale aircraft? Here's a clean and easy to install line of laser cut hide-away compartment kits that gets those ugly non-scale accessories and switches out of direct view.. but still instantly accessible for service. Comes in 4 sizes for various combinations of switches and accessories, designed to be simply installed in any flat, curved or concave surface.

Click any pic for full size!

Ignition Switch Hide in TF P51 ARF

Click any pic for full size!

Rx & Air line fill in TF P51 ARF

All of us have 'em... switches, ignition kills, fuel fill, air line feeds, charge ports... and if your anything like me, finishing off a beautiful scale project by hanging all the stuff necessary for R/C flight on the side of the plane seemed to be an insult to the scale look of the aircraft. Hours spent, cowling an engine.. only to have to hang an ignition switch, chargeport, fuel fill and engine kill on the nose. Yuck. Now, you can have easy access without uglying up your airplane or doubling the finish time. Easy, simple installation, works on ARF's as well as a scratch build projects.

Now you see 'em..

Now; you don't!

Setup, build and installation couldn't be made easier. These 'Quick Build' Aviation Concepts Laser cut kits come with pre-cut lite ply backplates for our HD Chargeport or OEM sized switches, Univ Chargeports for A123's, Air or Fuel Fills, Ignition Kills.. Just about anything. Setup and build is a snap.. each kit comes with a full size plan, and simple color photo assembly manual.

Pick your Kit..

Glue up the balsa Frame and adjustable depth lite ply Back Plate..

Stack & Glue the pre-cut balsa Hatch Cover..

Lay out location for frame installation..

Install frame in fuselage...

Sand frame to shape, slide in Back Plate, set Hatch cover Depth..

Sand the cover to shape...

Hinge as desired, (hinges shown not included) then cover as desired..

...or hinge with covering material...

Add the included Super Grip Micro Magnets and hardware, your switches 'n stuff... Hey! Your Done!

NEVER SETTLE FOR THIS AGAIN!

Get THIS instead!

Click on the Pic for full size

"Blank" $4.95

The "Blank", our smallest Switch Hide. 2 lite ply back plates, 1 laser cut as shown, 1 blank. Quick Build Kit, comes complete with detailed color photo instructions, full size plan and all laser cut balsa and lite ply lumber needed to assemble and install AND Super Grab Micro Magnet hatch latches and hardware. $4.95

Quantity:

Click on the Pic for full size

"Standard" $5.95

The "Standard", a bit wider Switch Hide. Can mount a pair of OEM switches with extra room for Air, Fuel fill or Ignition kill. Quick Build Kit, comes complete with detailed color photo instructions, full size plan and all laser cut balsa and lite ply lumber needed to assemble and install AND Super Grab Micro Magnet hatch latches and hardware. $5.95

Quantity:

Click on the Pic for full size

"Giant 1" $7.95

The "Giant 1", Pre-Cut for our HD Chargeport Switches! Great for A123 setups, pre-cut for a switch, chargeport and fill/kill. Quick Build Kit, comes complete with detailed color photo instructions, full size plan and all laser cut balsa and lite ply lumber needed to assemble and install AND Super Grab Micro Magnet hatch latches and hardware. $7.95

Quantity:

Click pic for full size

"Giant 2" $9.95

The "Giant 2", Pre-Cut for 2 of our HD Chargeport Switches! Great for Dual A123 setups, pre-cut for 2 switches, 2 chargeports and fill/kill. Quick Build Kit, comes complete with detailed color photo instructions, full size plan and all laser cut balsa and lite ply lumber needed to assemble and install AND Super Grab Micro Magnet hatch latches and hardware. $9.95

Quantity:

*NEW!!* Ultra Flex Heavy Duty 20g 'Aileron' Extensions & 'Y' Harness Very high quality 20g Twisted 3 lead extensions, *suitable for the most rigorous high load digital servo and battery extension applications.* Supple, flexible, twisted to help prevent RF glitches, flashed gold pin contacts, strong housings. Absolutely superb! These are designed for direct plug in use without any modification for any Futaba, JR, Hitec, Spectrum and Airtronics 'Z' system. 11" Universal Y, 20g Twisted: $10.95 6" Universal Straight Extension, 20g Twisted: $4.95 12" Universal Straight Extension, 20g Twisted: $6.95 18" Universal Straight Extension, 20g Twisted: $7.95 24" Universal Straight Extension, 20g Twisted: $8.95 36" Universal Straight Extension, 20g Twisted: $10.95	Choose Type & Length Quantity: rm>
22g male pack side connectors 22 gauge 2 wire type male for Futaba J systems, 22 gauge 2 wire type male for Hitec/JR/AirtZ systems, 22 gauge 2 wire type male for OLD Airtronics systems. Gold pin contacts; top quality, NOT Hobbico! 12" length. $3.95	$3.95 ea Conn Type Quantity:
18g HD male pack side connectors 18 gauge 2 wire type male for Futaba J systems and 18 gauge 2 wire type male for Hitec/JR/AirtZ systems. Gold pin contacts, Super Flex Silicone 18g leads, excellent quality (NOT Hobbico!) 12" length. $3.95	$3.95ea Conn Type Quantity:
22g HD Female 2 or 3 wire Servo or Charger connectors Heavy Duty 3 wire Female plugs with 12" leads. Choose 22 gauge 3 wire type Universal Female systems connector or 22 gauge 2 wire type Universal Female battery connectors for FJ/Hitec/JR/AirtZ systems. Good Quality.. NOT HOBBICO! $3.95	$3.95ea Conn Type Quantity:
Super Flex Wire, Red and Black 36" ea Super flexible, feels like limp spagetti. Very high strand count, excellent current handling and chafe resistance. Originally developed for a robotics application, this wire is ideal for custom wiring harnesses for Electrics and Giant Scale utility uses. 12g $5.00 pkg (Electrics above 35 amps) 14g $4.00 pkg (Electrics at 20-35 amps) 16g $3.00 pkg (Speed 400/480, 10-20 amps) 18g $3.00 pkg (Speed 280-400, 5-10 amps) 20g $3.00 pkg (Micro Electrics, to 8 amps	Wire Gauge Quantity:
Wire Harness Spiral Wrap This spiral wrap is an ideal covering used to neatly bundle and protect servo wires, fuel and air tubing. Light weight, abrasion resistant and easy to install after harness is in place. 24 inch lengths of 4 different popular sizes. 8 feet total package of fluorescent red, green & yellow. Brilliant!! Aviation Concepts Wire Spiral Wrap, just $5.95	Wire Harness Spiral Wrap, 4 lengths, 24", Assorted colors $5.95 Quantity:
Wire Harness 'Twist' Clips Outstanding! Brilliant! At last, a way to quickly secure wiring or tubing and re-gain acess to the loom without a pair of side-cutters! These clips offer a fast way to secure multiple servo wires neatly in a harness. A simple twist locks or unlocks them. Qty 10 ea 1/4”, 3/8“ & ½” 30 pcs. Total. Aviation Concepts Wiring 'Twist' clips, 30ea just $5.95	Wiring 'Twist' Clips, 30ea $5.95 Quantity:
"Zip" Cable Ties Well, if you must, you can always use these time-proven and practical traditional 'Zip' ties to bundle up your servo wires. Use with the small loop clamps or secure as shown in the picture. Very high quality, UV & Fuel resistant. Maximum bundle diameter ¾”. Qty. 100 ties per package. Aviation Concepts 'Zip' Ties, 100 per, just $2.95	Wiring 'Zip' Ties, 100ea $2.95 Quantity:

Air Hose Set for Retracts, Door Sequencers, Air Speed Pitot Tubes This high resilience pneumatic air line tubing offers excellent resistance to kinks, tears, abrasion, ozone, humidity and chemicals. Better fitting 'grip', superior toughness, remains impact resistant and flexible even in cold temperatures. 10 feet total per package, 5' each of Red and Blue hose. Aviation Concepts Air Hose Kit, just $5.95	No-Kink Air Hose Set, 5ft Red, 5ft Blue $5.95 Quantity:
In-Line Hose Quick Connects For separating / connecting pneumatic retract, pitot or brake lines. Use between wing and fuselage or anyplace a a quick disconnect is required. Very high quality, excellent hose bib slip-on grip. Comes ready to use, 2 pairs Aviation Concepts Air Line Coupling Set, just $8.95	Air Line Quick Connects, 2 pair $8.95 Quantity:
Bulkhead Mount Quick Connects Brilliant! Finally, a line connector designed for bulkhead or former mounting. One-Handed operation! As with the In--Line version, you can use these for separating / connecting pneumatic retracts, brake lines & pitot tubing, etc. Simple setup, uses a 7/16" diameter hole and is held securely with a thin mounting nut. Very popular for wing and fuselage connections from a mounted fitting in the fuselage or wing root. 2 pairs. Aviation Concepts Bulkhead Line Connectors, just $10.95	Bulkhead Mount Quick Connects, 2 pr $10.95 Quantity:
Tubing Mount Clips Securely mount and neatly organize your Air Line and Fuel system hoses. No 'pinch', no fuss. Avoid 'crunching' lines between the wing and fuselage during setup. Very neat setup item for fuel line routing on firewalls keeping them clear of the exhaust and helps organize the 'spagetti factory' retract line setup at the wing root. Availabe in: 5 ea. 1/8” & 5ea ¼”, 10 pcs.Total, 10ea 1/8" for Air Lines 10ea 1/4" for Fuel Tubing Aviation Concepts Tubing Mount Clips, just $6.95 for 10ea	Tandem Tubing Mount Clips, 10 pcs total $6.95 Tandem Mount Clip Type Quantity:

TYGONâ Fuel Tubing This fuel tubing is used for gasoline powered engines and kerosene smoke oil systems. Tygonâ fuel and lubricant tubing resists embrittlement, cracking, swelling and hardening not like the other commonly sold yellow vinyl gas fuel tubing. 1/8” I.D. x 5 feet Aviation Concepts Tygon Fuel Tubing, just $5.95	For GASOLINE engines, NOT Glow. $5.95 for 5ft Quantity:
Fuel & Air Tubing Mount Clips Securely mount and neatly organize your Fuel system hoses & air lines. No 'pinch', no fuss. Avoid 'cooking' fuel lines on your cyclider head or exhaust system. Neatly routes fuel and vent lines on the firewall. Included are 5ea tandem clips for air lines and 5ea tandem clips for fuel tubing. (Qty 5 ea. 1/8” & ¼”, 10 pcs.Total) Aviation Concepts Tubing Mount Clips, just $6.95	Tandem Fuel Line & Air Hose Clips, 10 pcs $6.95 Quantity:
Tubing Cutter Cut fuel and air tubing with clean square cuts. No more jagged or angled tubing ends to cause possible air or fuel leaks. Aviation Concepts Tubing Cutter, just $10.95	Tubing Cutter for Fuel or Air Line $10.95 Quantity:
Digital Volt Meter, Universal A brilliant and easy to read minature Universal Digital Volt Meter for 6-18v DC. Powered by the source battery being monitered and exceptionally easy to install! Mount it almost anywhere... Displays accurate DC voltage readings from 6 to 18v. We use them in our flight boxes to keep track of the field battery voltage but they also can be used in a variety of applications. Add it to a battery charger circuit or you can install it in cars, trucks, RV's, boats, full size aircraft, the list is endless! It's simple to install and hook up, there's a pair of terminal posts for wire lugs on the back and it mounts in a tiny 1 5/16" x 13/16" opening. Aviation Concepts Universal Volt Meter, just $39.95	Aviation Concepts UVM $39.95 Quantity:
